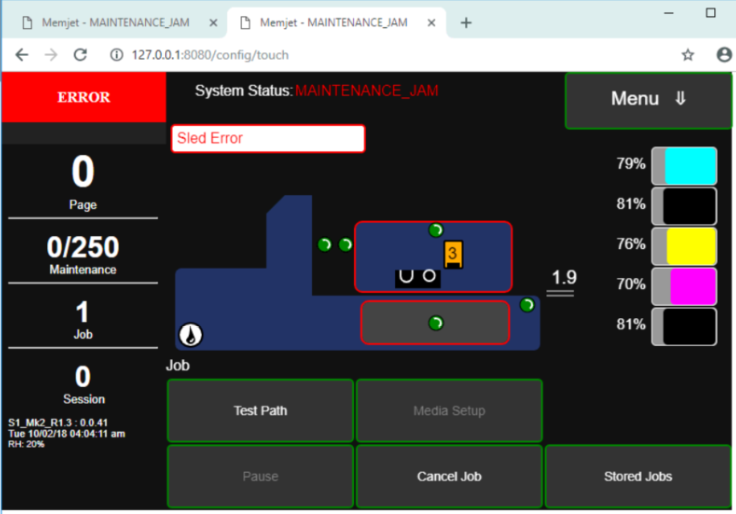

Maintenance Jam - Sled Error

Maintenance Jam - Sled Error is caused by the motor which moves the service sled back and forth. When the error occurs, it is because the motor didn't draw the correct amount of current. This is generally remedied by adjusting the tension of the belt which moves the station. The videos below will guide you through this process.

These videos and images are for reference.  Any adjustments need to be made under the direction of a qualified technician.

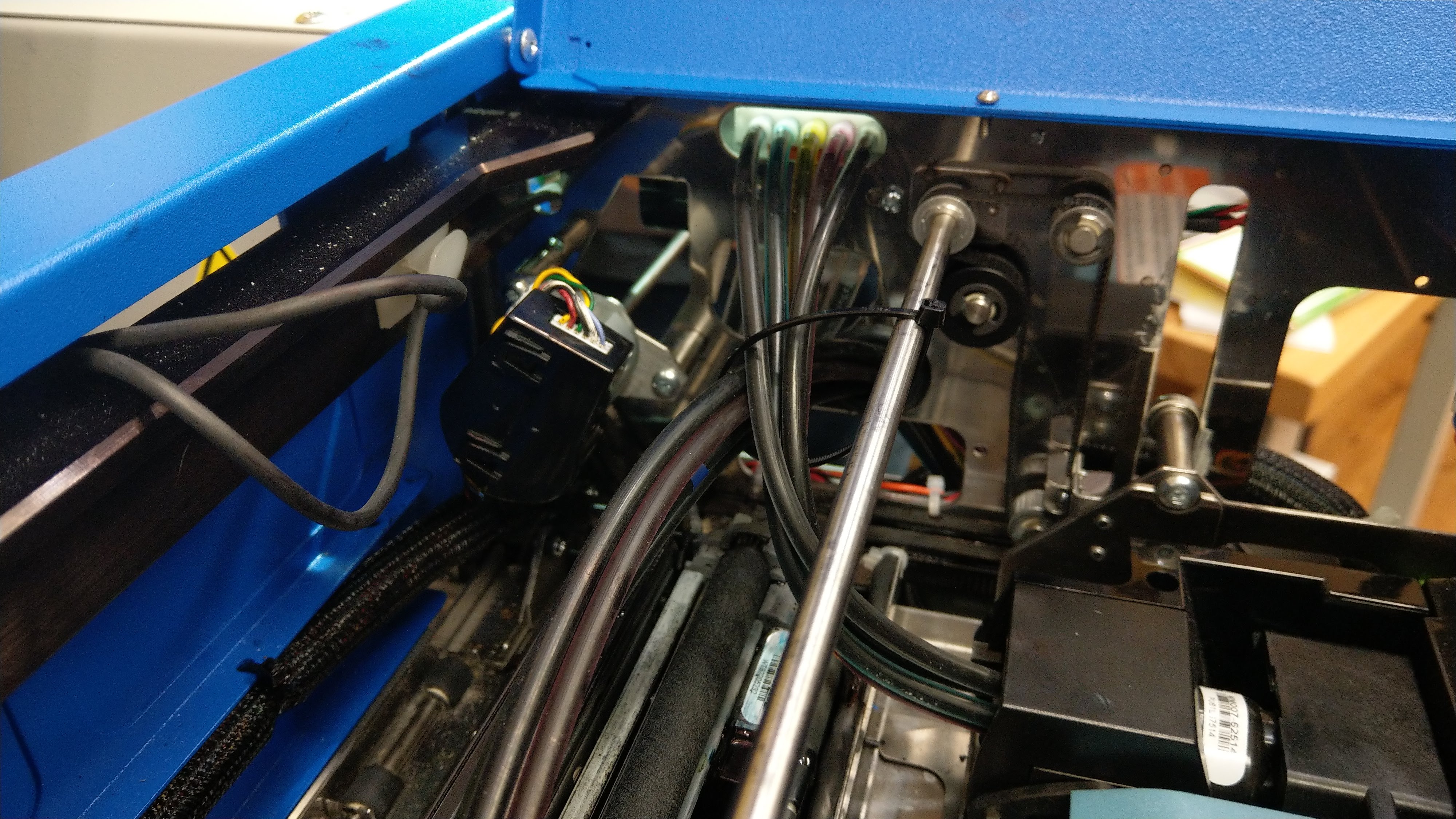

1, Remove the rear cover to expose the idler pulley.
2. Loosen the idler pulley, then adjust its position and tighten again.
3. Perform the sled motor self test. If the test passes, you are done. Otherwise, return to step 2 and adjust further. The final adjustment of the pulley will likely be very minute.
