Adjust Rear Media Support Guide

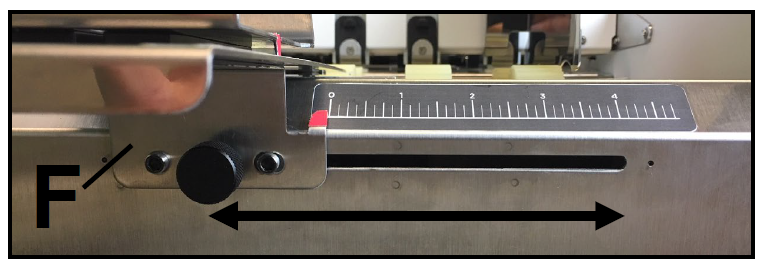

1. Adjust Rear Media Support Guide [F]. Loosen the locking knob and slide Guide right or left, to center Guide on the width of your media. Then secure locking knob.

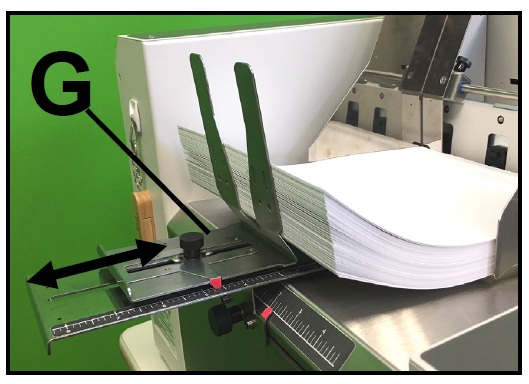

2. Adjust Rear Media Support Sled [G]. Loosen locking knob and move Sled to desired position, to raise/support trailing edge of media. Then secure locking knob.

Examples:

Sheet Paper - Raise media ~ 1.25" above Feed Table

#10 Envelopes – Raise media ~ 0.5" above Feed Table.

NOTE: Raising the media too high above the Feed Table will cause loss of contact between media and feed rollers; which can cause hesitation in feed. The Rear Media Support Sled should be positioned so the media stack is being held against the separation area while still providing proper media to feed roller contact.
